AOC Adaptor

Description

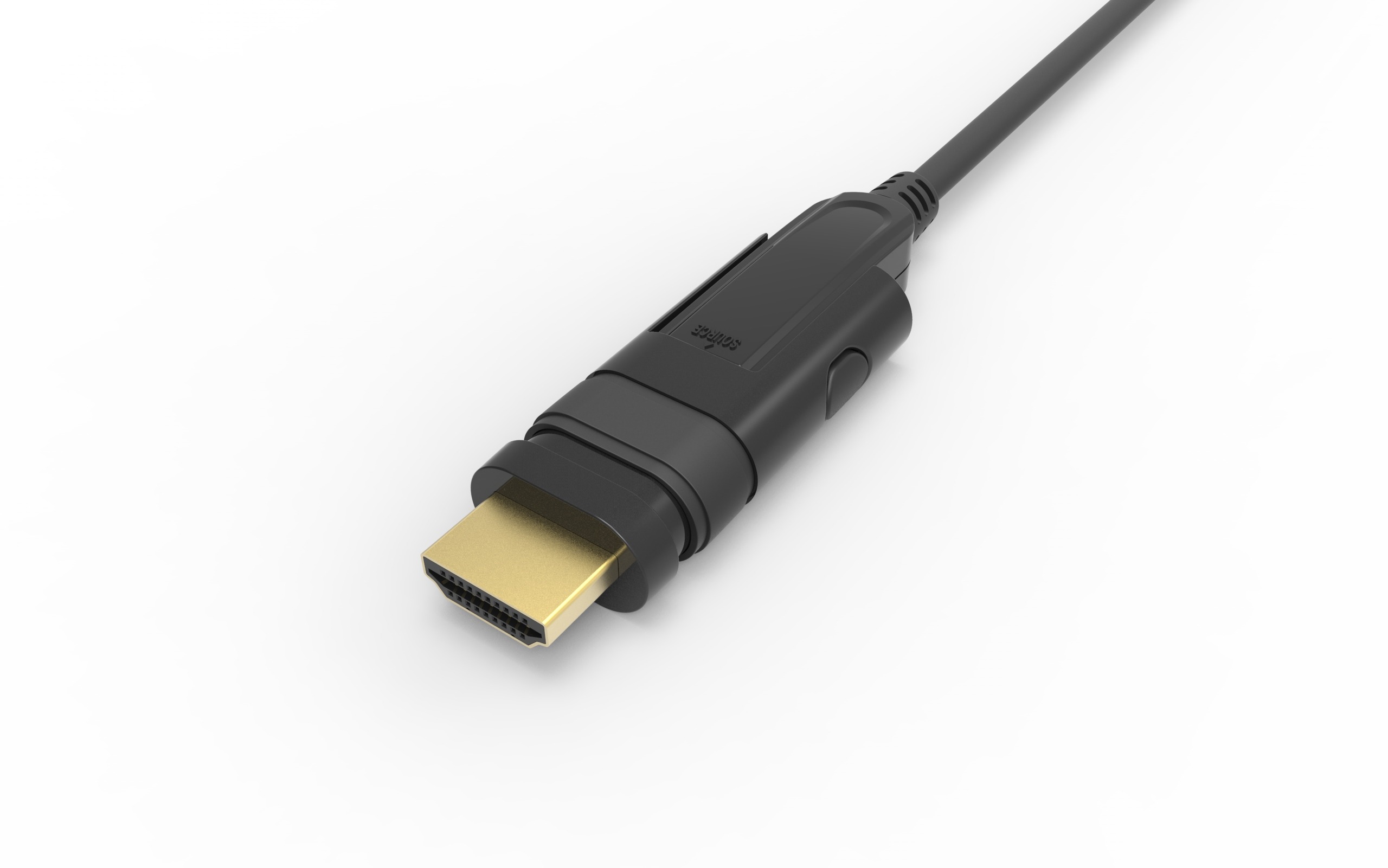

These are terminated with micro HDMI type D connectors and supplied with Commtel Innovate’s patented locking adapters to fit full-size, type A HDMI connectors. These were developed to aid fixed installation; the micro HDMI connectors reducing the likelihood of snagging as the cable is pulled through conduit, fed through voids or behind plaster board. Other benefits may include applications where cables must pass through congested and/or small apertures, such as internally wired brackets and mounts.

Key Features:

• Patented locking HDMI A(M) to HDMI D(M) adapter
• 4K@60 4:4:4 18Gbps
• Supports HDMI 2.1 up to 24 Gbps (6Gbps/ch * 4)
• Reduced risk of EMI & RFI for maximum signal integrity
• No external power required

Additional Features

• Up to 100m maximum length
• Data Rate 18Gbps (6Gbps per Channel)
• Compatible with HDMI 2.0 standard.
• Support HDCP1.4 and HDCP2.2
• Support ARC/HEAC/HDR
• Self-detecting function for EDID information
• No loss of signal delivering crystal clear digital images instantly.
• Supports computer resolutions to 1080P and 4K2K (60P YUV 4:4:4).
• Hybrid optical cable with fiber and copper wire

Applications

• Digital signage
• LED signboards in streets and in stadiums
• Medical imaging equipment
• Airplane on-board video system
• Home theatre
• Blu-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer Systems
• TV broadcast station
• Conference room video equipment
• Security systems

Performance Support:

• True 4K/Ultra HD 4K@60 4:4:4 2160p full 18Gbps
• Premium high speed HDMI® cable with ethernet
• HDR – high dynamic range supported
• BT.2020 colorimetry – 10/12 4:4:4
• 32 channel audio – 11.2 surround sound
• ARC – audio return channel
• HD-3D – full high definition 3D
• HDCP 2.2
• ATC tested – HDMI v2.0b Compliant
• Supports: Dolby atmos® and more
